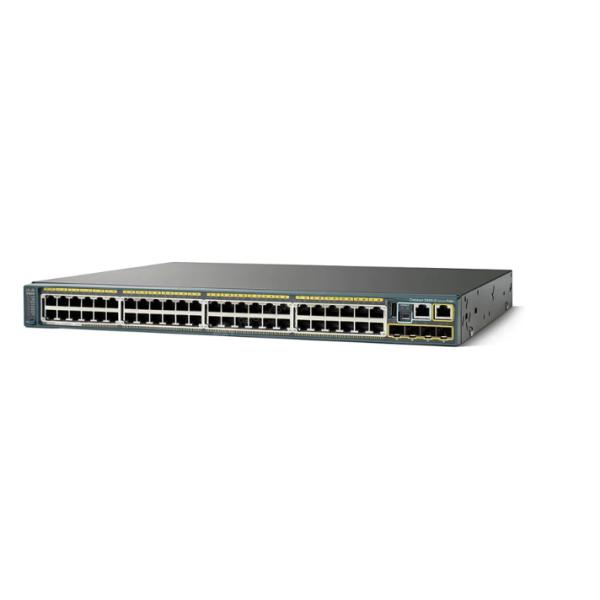

2960S series 48 Ports gigabit Ethernet POE network Switch WS-C2960S-48FPS-L

  • 1
  • 2
  • 3

Brand Name : Cisco

Model Number : WS-C2960S-48FPS-L

Place of Origin : Beijing, China

MOQ : 2 pieces

Price : $250.00/pieces 2-49 pieces

Payment Terms : T/T, Western Union

Delivery Time : 3 working days

Packaging Details : 55*45*22cm

Products Status : Stock

Ports : ≥ 48

Transmission Rate : 10/100/1000Mbps

Function : LACP, POE, QoS, SNMP, stackable, VLAN Support, Network Devices

Communication Mode : Full-Duplex & Half-Duplex

Switch Capacity : 96G

Product Name : WS-C2960S-48FPS-L

Condition : Brand-new

Power Supply : Input:AC100-240V 50/60Hz

PoE Ports : 48 Ports

Product Description : Gigabit Ethernet Network Switch

Warranty : 1 Year

Contact Now

WS-C2960S-48FPS-L Overview

The WS-C2960S-48FPS-L is different from the WS-C2960S-48LPS-L in the PoE capabilities, because Cisco WS-C2960S-48FPS with Full PoE function can offer 740W PoE Power total with 24 ports up to 30W per switch ports or 48 ports up to 15.4W per switch port. But Cisco Catalyst Switch 2960S-48FPS-L and 2960S-48LPS-L share a similar datasheet with 4 One Gigabit Ethernet SFP uplink ports and optional Cisco FlexStack stacking supporting 20 Gbps of throughput. Both are Catalyst 2960-S models with LAN Base Software.2960S series 48 Ports gigabit Ethernet POE network Switch WS-C2960S-48FPS-L

Table 1 shows the Quick Spec of the WS-C2960S-48FPS-L.

Product Code WS-C2960S-48FPS-L
Enclosure Type Rack-mountable - 1U
Feature Set LAN Base
PoE capacity 740W
Uplink Interfaces Four 1G Small Form-Factor Pluggable(SFP)
Downlink Ports 48 × Ethernet 10/100/1000 PoE+ ports
Expansion Slot(s) 1 (total) / 1 (free) x Stacking Module
Switching capacity 176 Gbps
Forwarding/Filtering Rate: 77.4 Mpps
DRAM 128 MB
Flash Memory 64 MB
Dimensions 44.5 × 38.6 × 4.5 cm
Package Weight 10.65 Kg

2960S series 48 Ports gigabit Ethernet POE network Switch WS-C2960S-48FPS-L

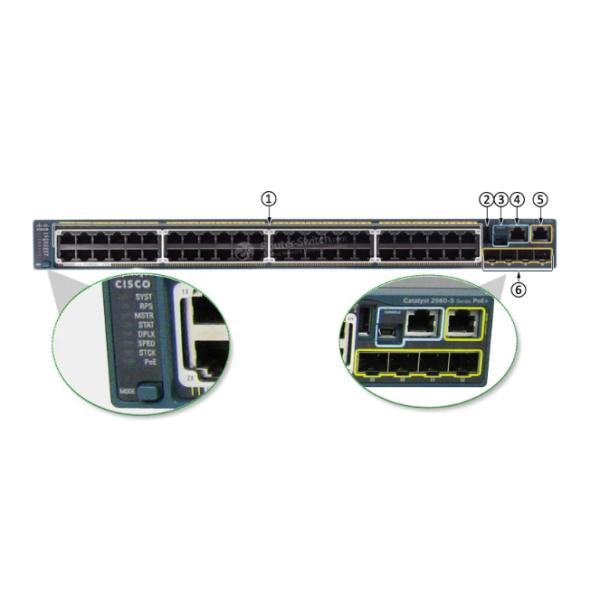

Note:

① 48 × Ethernet 10/100/1000 PoE+ ports ④ RJ45 Console Port
② USB Type A Port ⑤ Ethernet Management Port
③ USB mini-Type B (console) Port ⑥ SFP Module Slots



2960S series 48 Ports gigabit Ethernet POE network Switch WS-C2960S-48FPS-L

Note:

① 1 (total) / 1 (free) x Stacking Module ③ RPS Connector
② Fan Exhaust ④ AC power connector

Table 2 shows some accessories of the WS-C2960S-48FPS-L.

Models Description
C2960S-STACK Catalyst 2960S FlexStack Stack Module optional for LAN Base
GLC-LH-SM GE SFP, LC connector LX/LH transceiver
GLC-SX-MM D 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

Table 3 shows the comparison of similar items.

Models WS-C2960S-48FPS-L WS-C2960S-48LPS-L
Ports 48 × Ethernet 10/100/1000 PoE+ ports 48 × Ethernet 10/100/1000 PoE+ ports
PoE Capacity 740W 370W
Uplinks 4 x 1G SFP 4 x 1G SFP
Feature Set LAN Base LAN Base
Stackable Yes Yes
